KMT Plus 75
KMT Plus 75
Doors intended primarily for use as entrance doors in single-family buildings. The 75 mm leaf thickness, polyurethane foam filling and thermally broken door frame allow for limited heat loss.
The door leaf is equipped with a system of strong multi-point locks. The locks have class 4 burglary resistance. 6 fixed pins are included as standard, which, when closing the door, snap into sockets installed in the frame, preventing the door leaf from coming out.
The steel door frame and threshold are equipped with a thermal break, which guarantees effective insulation and contributes to a significant improvement in the energy balance of the house. Problem-free replacement of the threshold if it is damaged during use.
The huge hinges allow adjustment in three planes, allowing for a better fit between the door leaf and the frame.
The distinctive deep embossing (5 mm) increases the attractiveness of the door and also strengthens the structure of the leaf.
- Leaf thickness – 75 mm.
- Leaf filling: CFC-free polyurethane foam.
- Embossing: deep, surface.
- The door leaf is made in a recessed version.
- Material: galvanised sheet steel, coated with a weather-resistant wood-like laminate.
- The door frame is made of 1.5 mm thick laminated sheet steel or, optionally, an aluminium door frame.
- A double seal system that presses the door leaf firmly against the frame.
- 3D hinges adjustable in three planes.
- Possibility of shortening the leaf to 130 mm.
- For a flat sheet with wooden structure a standard door frame (without structure) is used.
- 1. Additional class 4 lock.
- 2. Zipper pocket.
- 3. Class 4 multipoint lock.
- 4. Adjustable hinge in 3 planes.
- 5. Anti-theft pin.
- 6. Reduced stamp.
- 7. Glued wood structure.
- 8. Polyurethane foam.
- 9. Zinc layer.
- 10. Steel plate.
- 11. Zinc layer.
- 12. Wood-like laminate.
- Laminated door leaf.
- TERMA door frame (warm) + TERMA threshold (warm).
- Basic multipoint lock + additional class 4 lock.
- 3D hinges with lid 3 pcs.
- Anti-theft bolts 6 pcs.
- Lock setting.
Options for an additional fee
- KMT door handles (longitudinal signs only), Handrails.
- Aluminium hinge caps.
- 50×50 inserts.
- Wide-angle viewer (hole height adapted to the relief). < li>Cut to size (max. 130 mm).
- Bottom masking strip (need to be shortened by yourself).
- Anti-drip flap for inward-opening external doors.
- Bumper strip.
- Reinforcement for the door closer.
- Door closer.
- Element that holds the door closer arm.
- Electric strike + additional roller lock.
- ENERGY 90 door frame (anti-frost) + ENERGY 90 threshold.
- PASSIVE door frame + PASSIVE threshold.

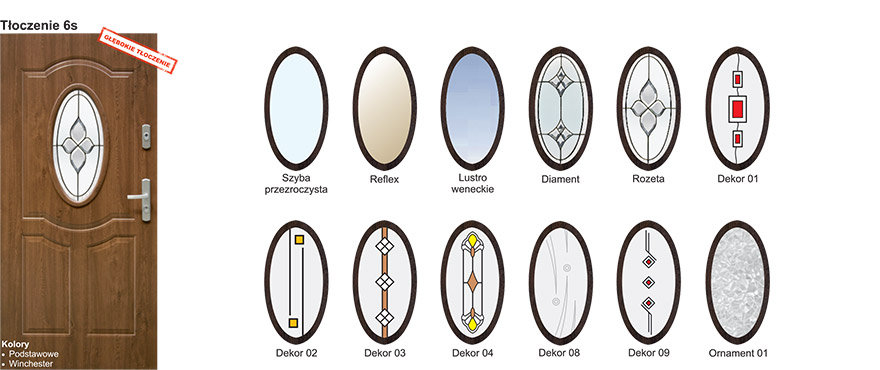

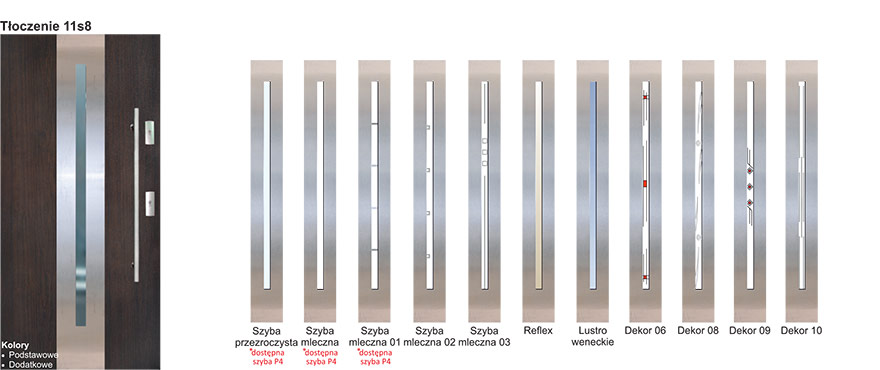

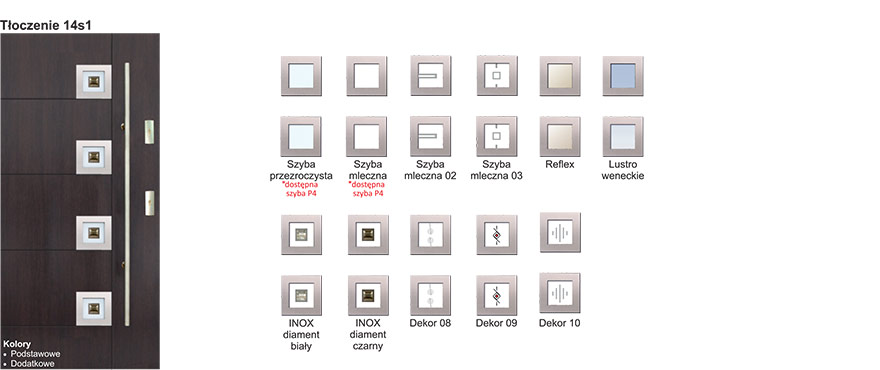

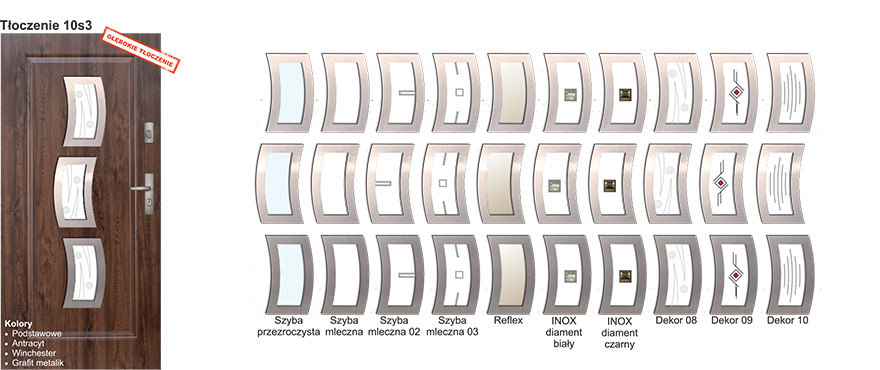

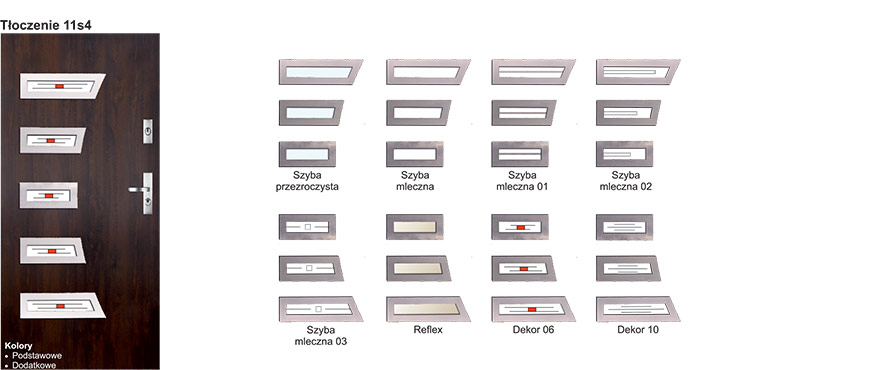

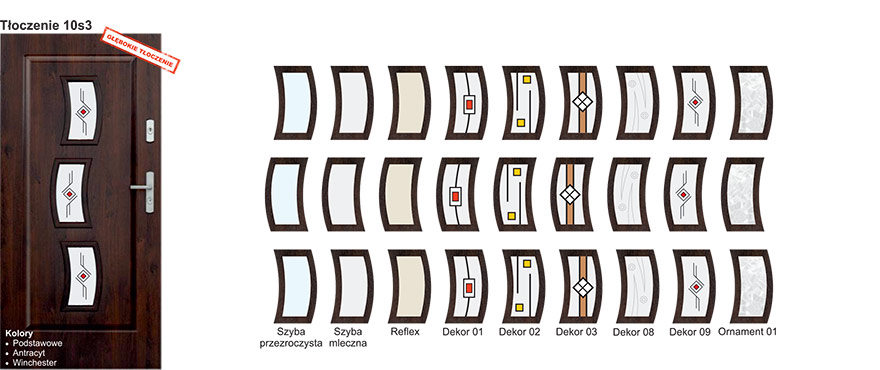

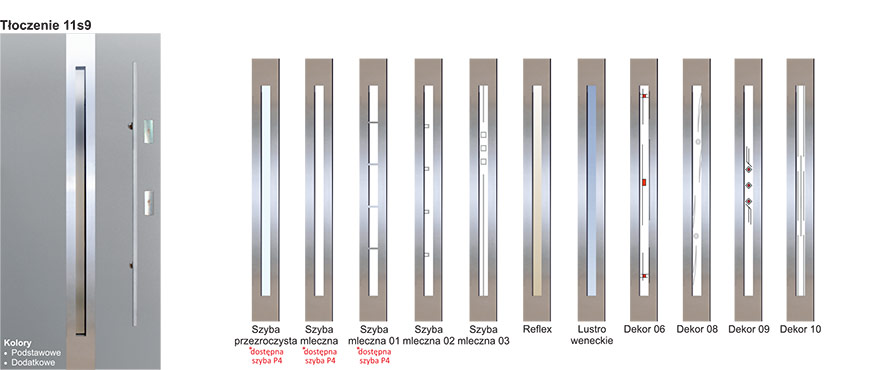

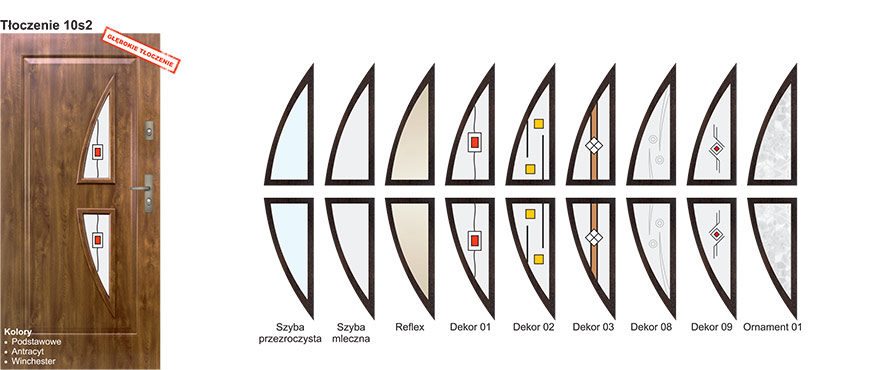

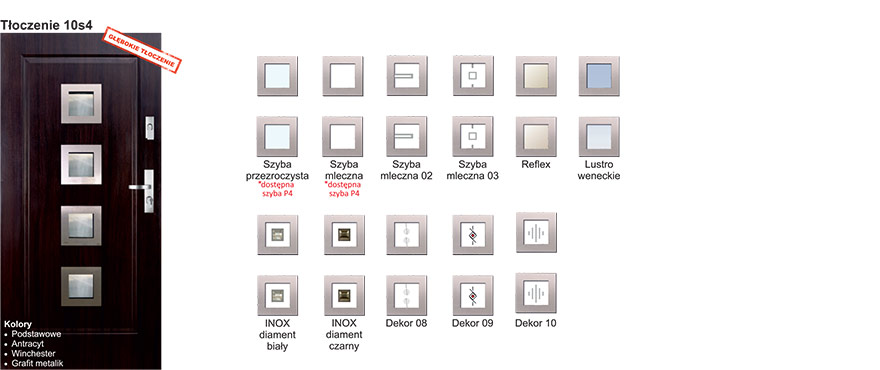

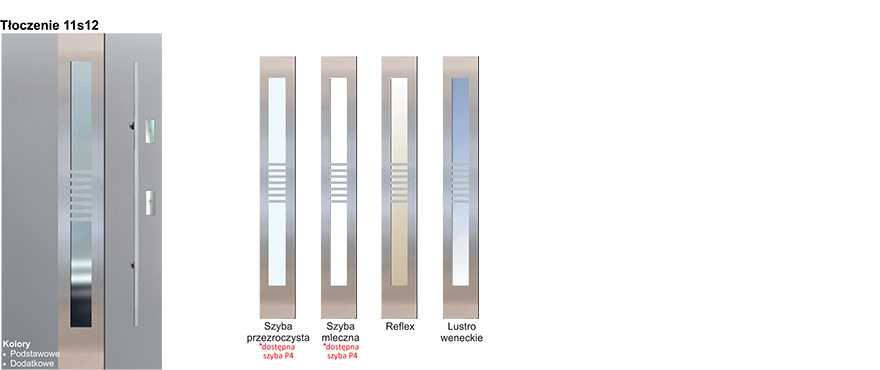

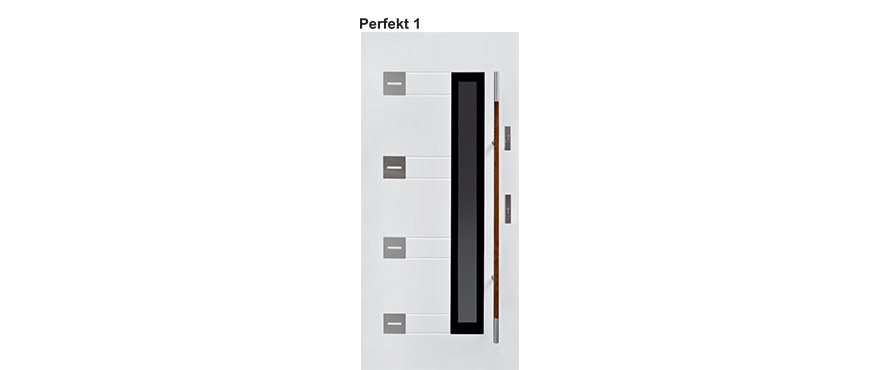

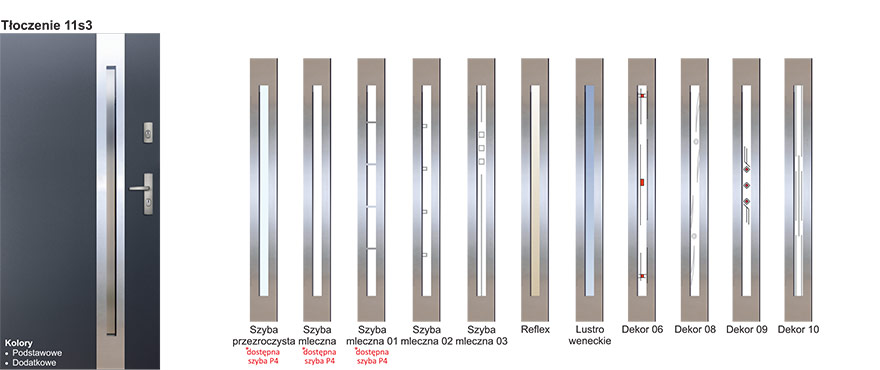

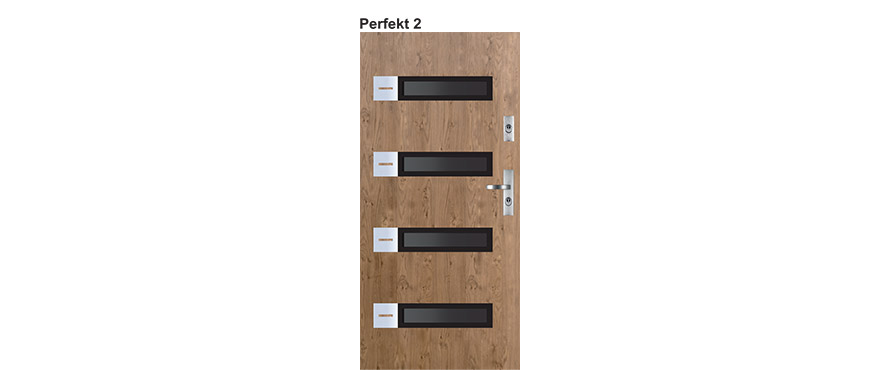

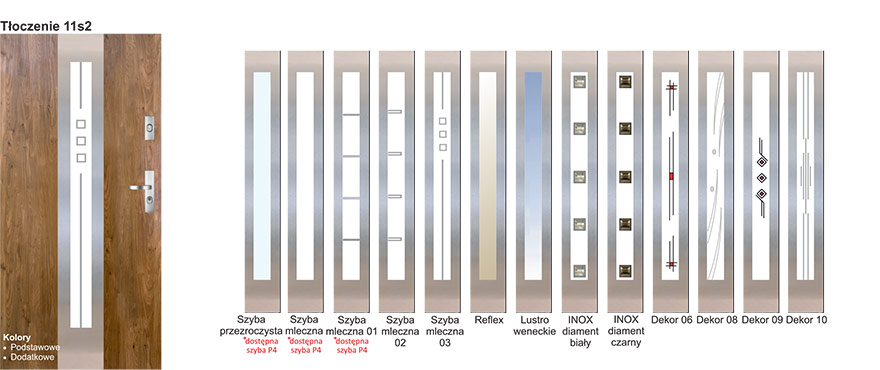

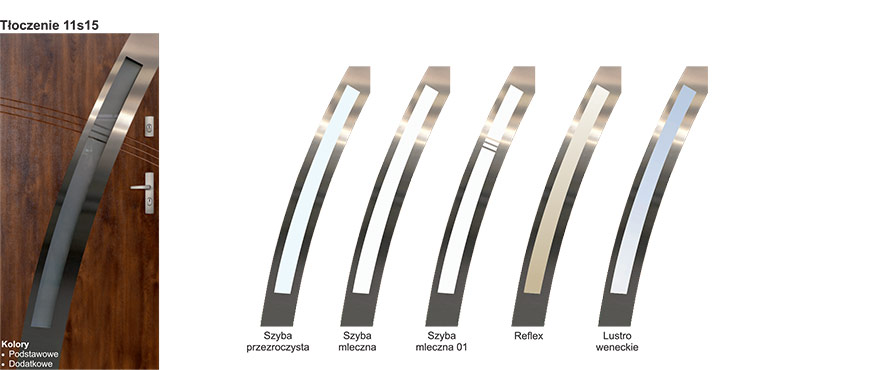

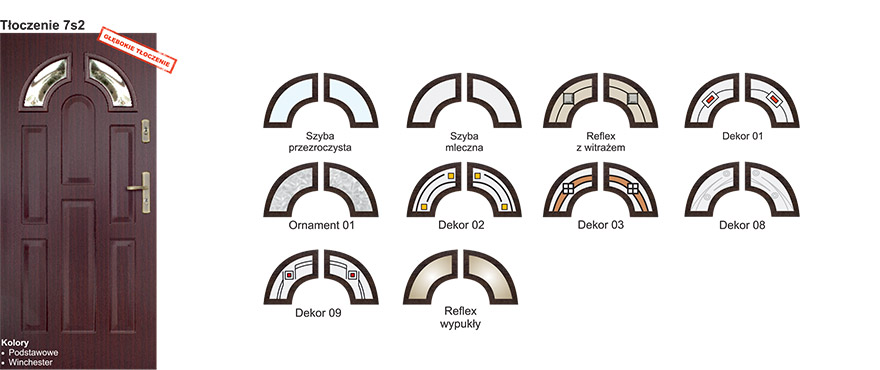

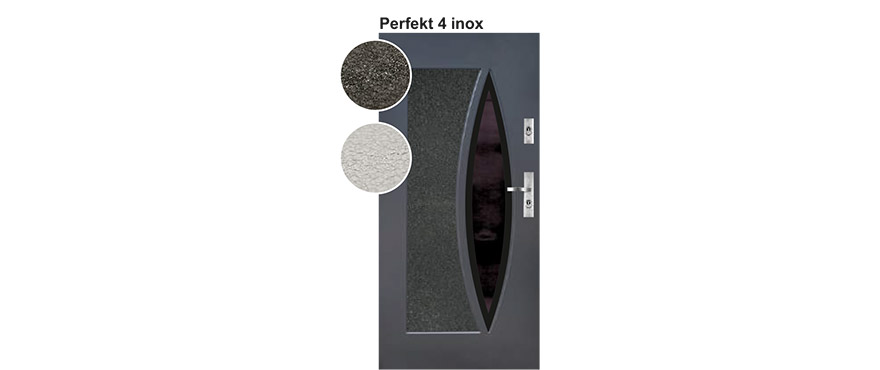

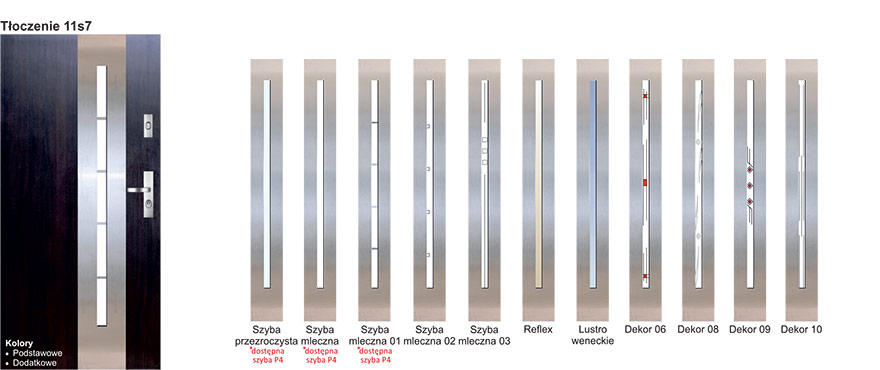

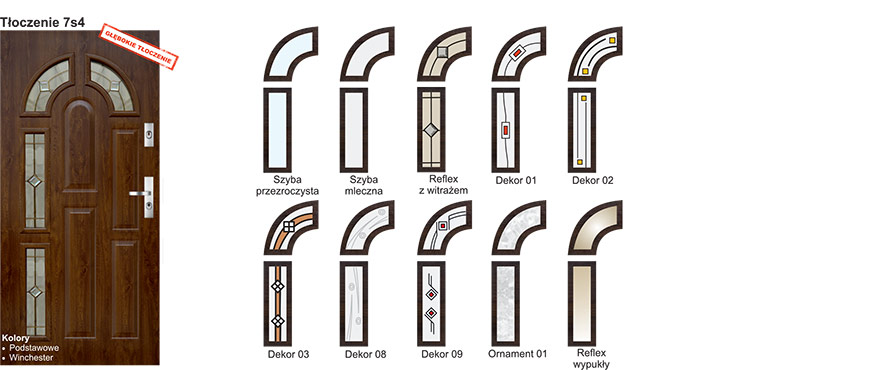

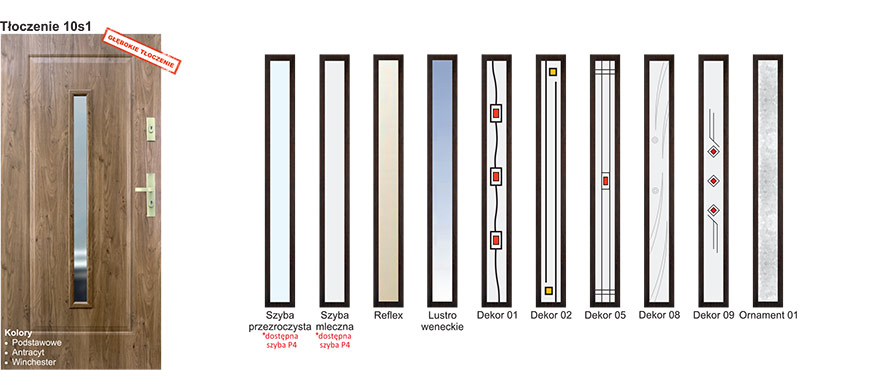

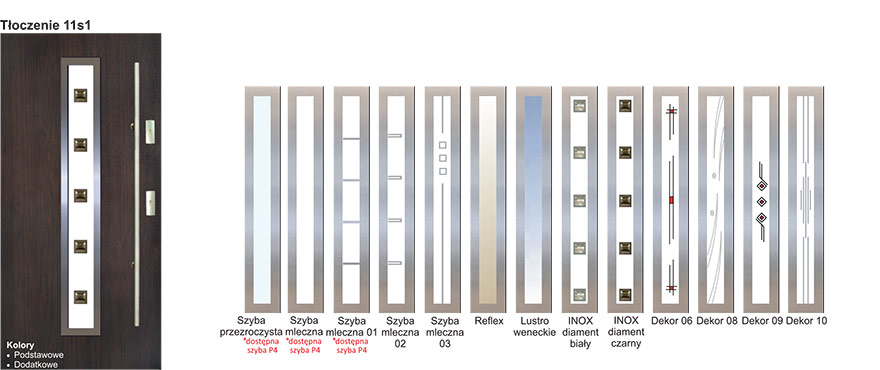

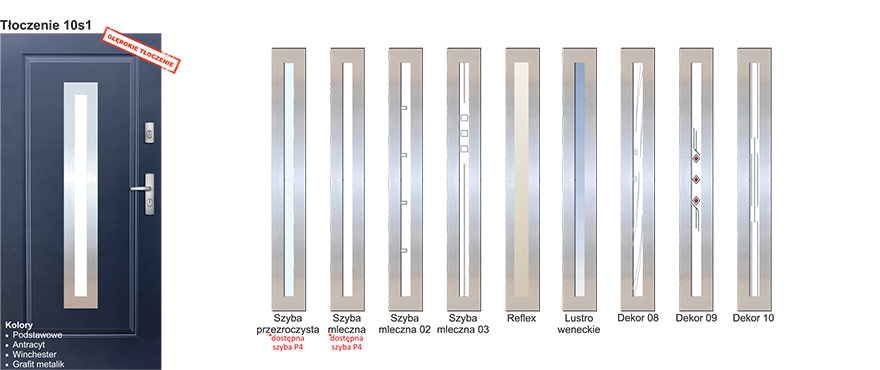

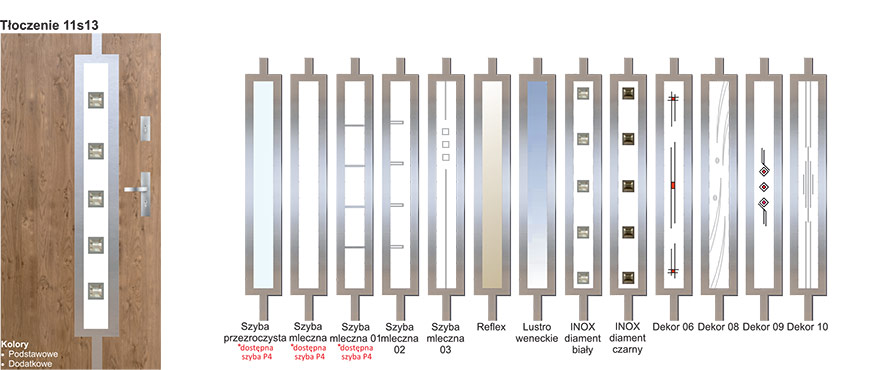

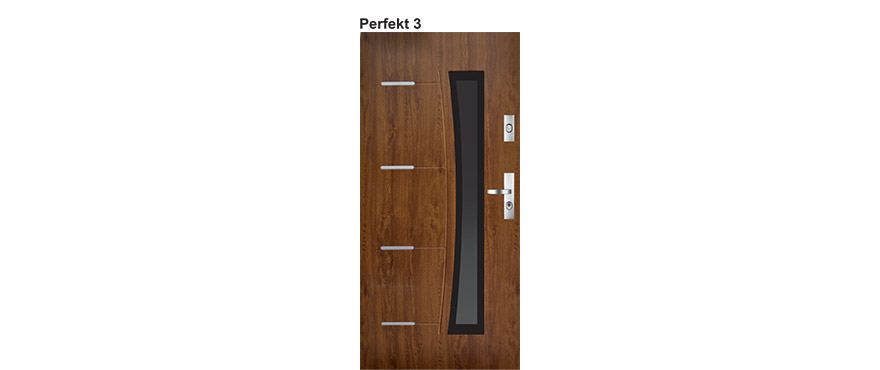

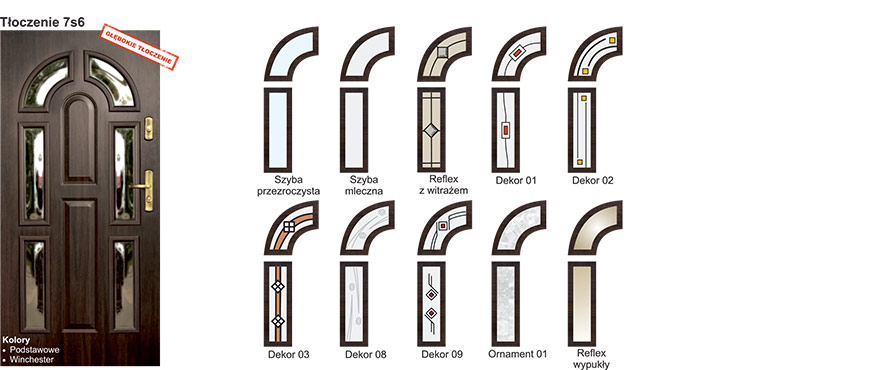

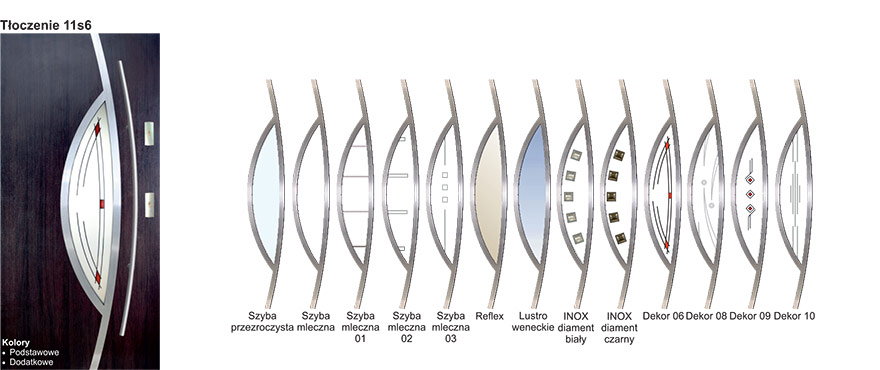

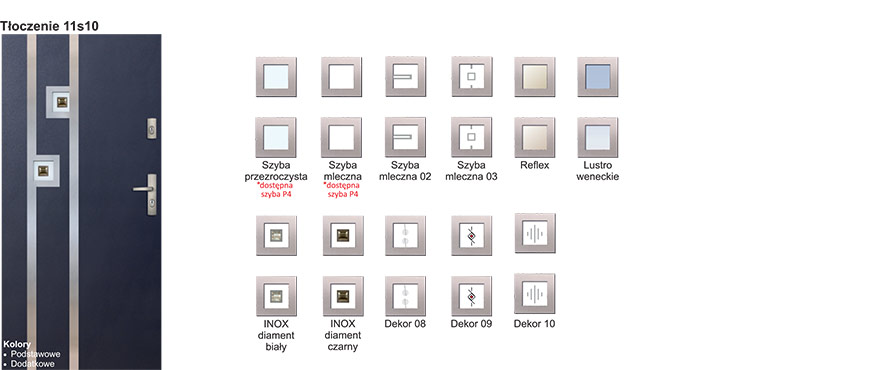

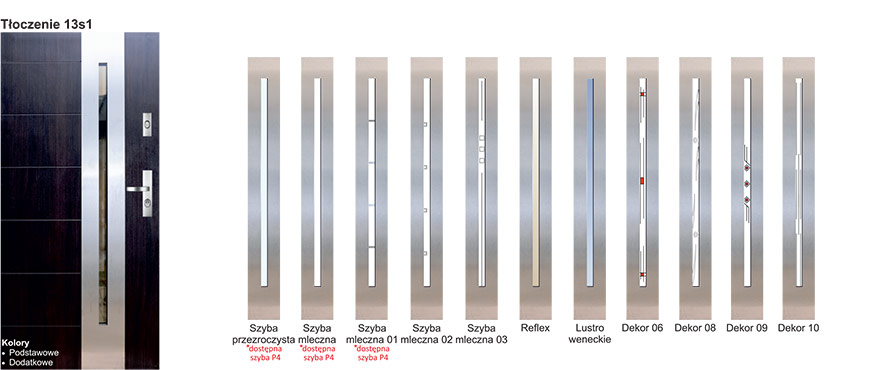

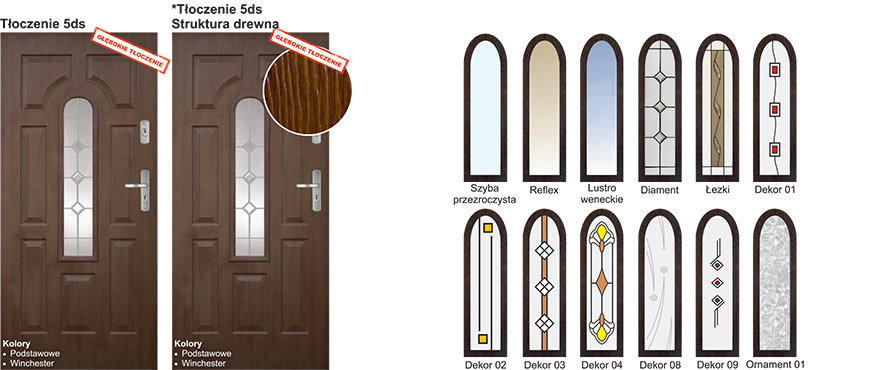

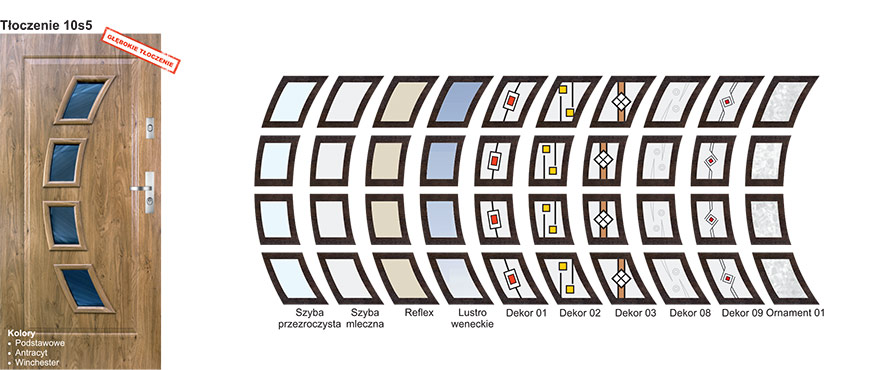

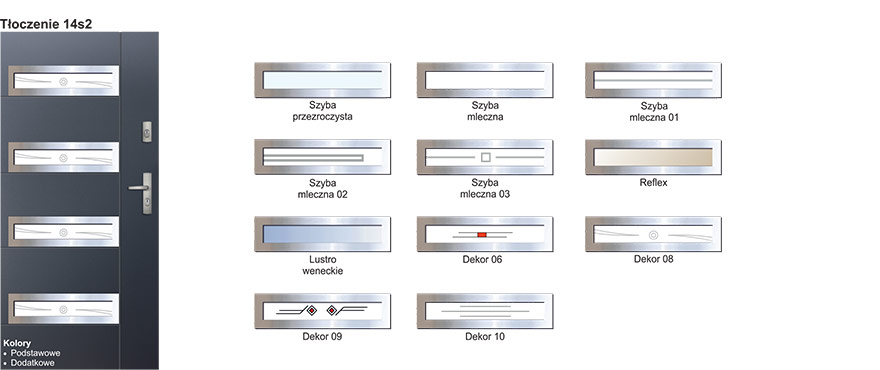

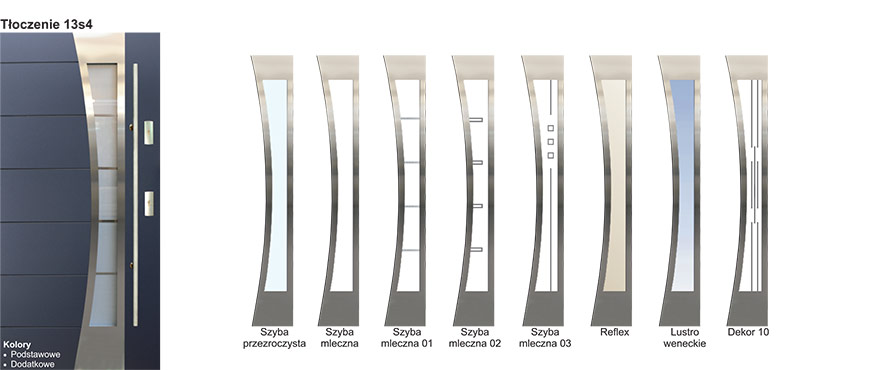

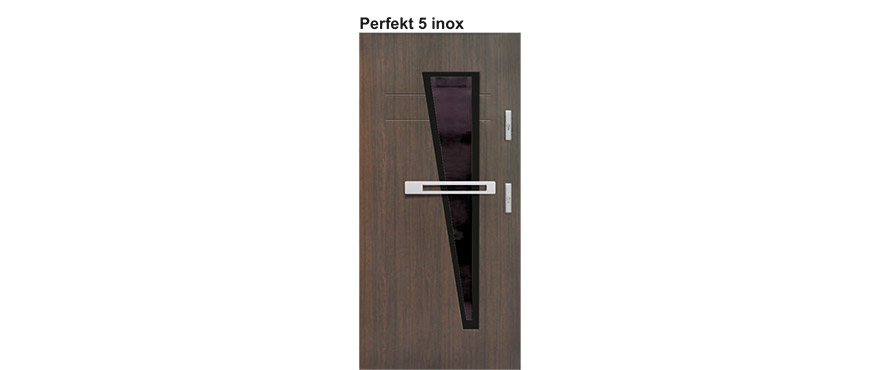

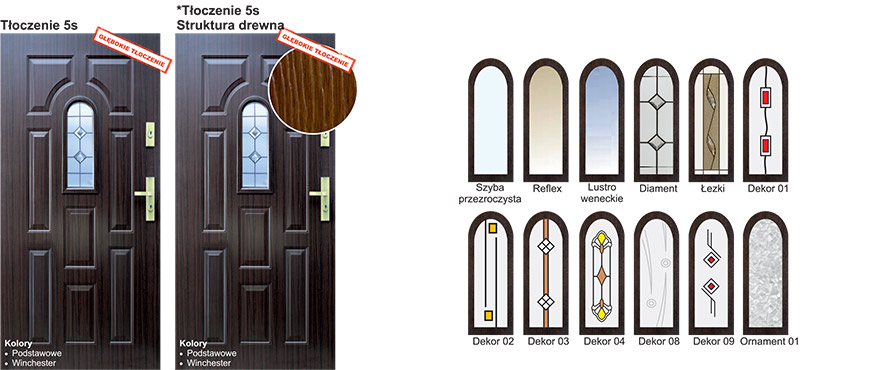

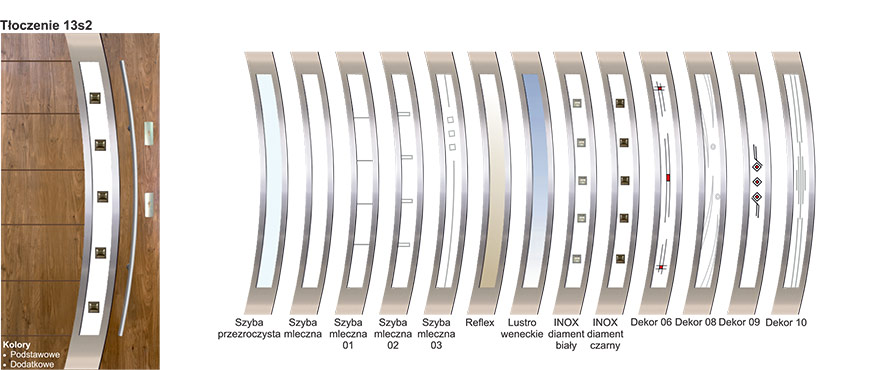

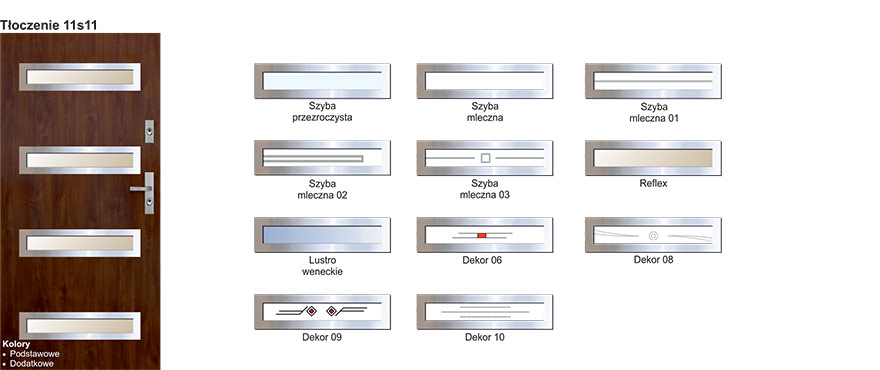

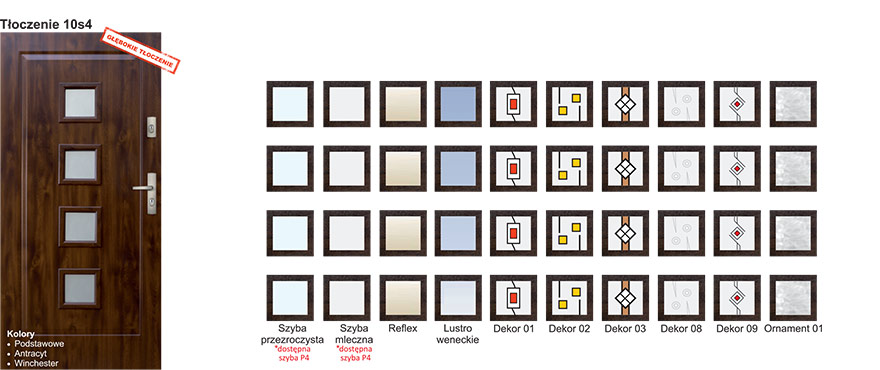

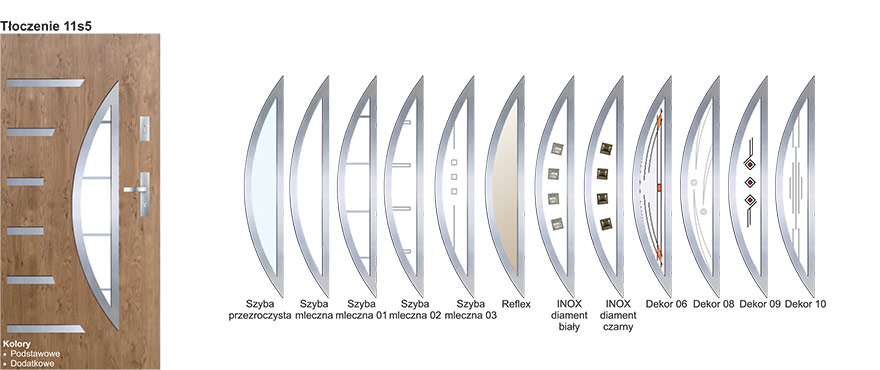

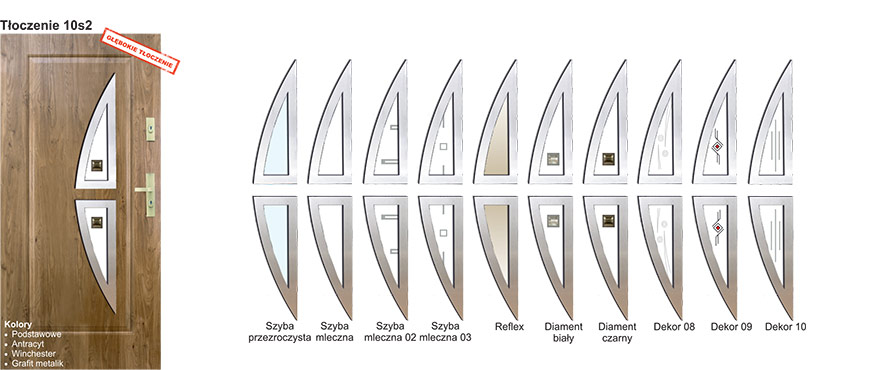

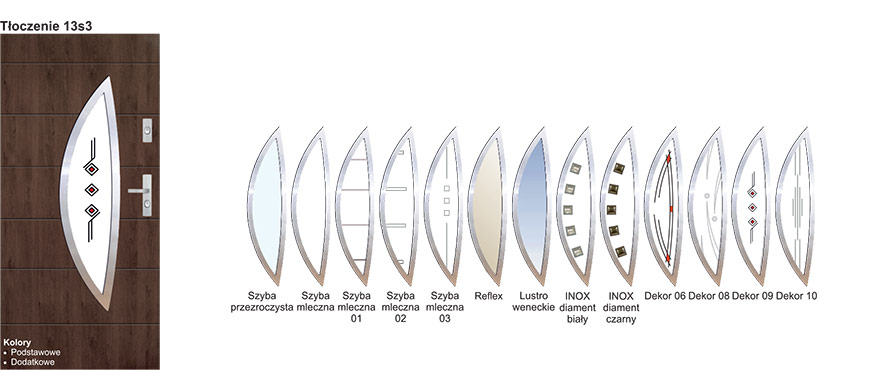

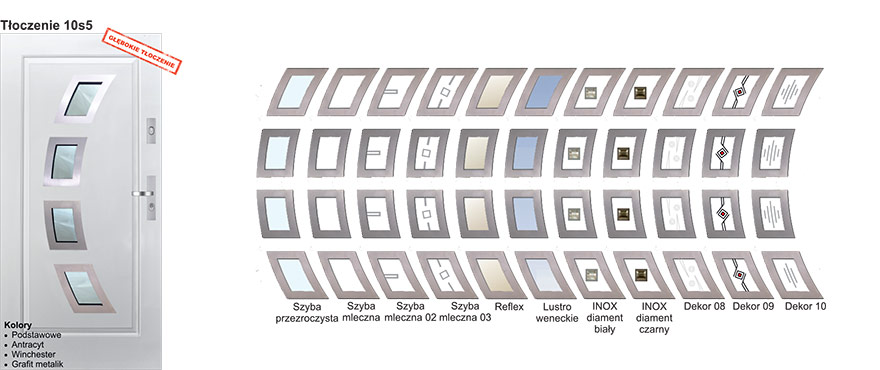

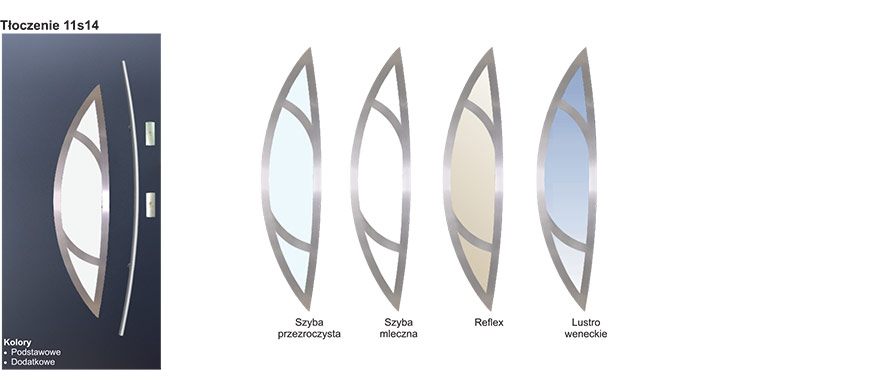

Door designs:
